Motherboard MSI H310 PRO M2 DDR4 m-ATX LGA1151 HDMI VGA - H310 PRO M2

FEATURES :
- M.2 : Supports NVMe with up to 20 Gb/s using PCI-Express Gen2 x 4.
- X-Boost : Software to auto-detect and boost the performance of storage or USB devices.
- EZ Debug LED : Simplifies troubleshooting for quick issue identification.
- Audio Boost : Enhances sound quality for an immersive audio experience.
- Core Boost : Optimized power design for supporting more cores and better performance.
- DDR4 Boost : Delivers pure data signals for improved gaming performance and stability.

SPECIFICATIONS :
Model Name: H310M PRO-M2
CPU Support: Supports 8th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
CPU Socket: LGA 1151
Chipset: Intel® H310 Chipset
Graphics Interface: 1 x PCI-E 3.0 x16 slot
Display Interface: HDMI™, DVI-D, VGA (requires processor graphics)
Memory Support: 2 DIMMs, Dual Channel DDR4 up to 2666MHz
Expansion Slots: 2 x PCI-E x1 slots
Storage: 1 x M.2 slot, 4 x SATA 6Gb/s ports
USB Ports: 4 x USB 3.1(Gen1), 6 x USB 2.0
LAN: Intel® I219-V Gigabit LAN
Audio: 8-Channel (7.1) HD Audio with Audio Boost

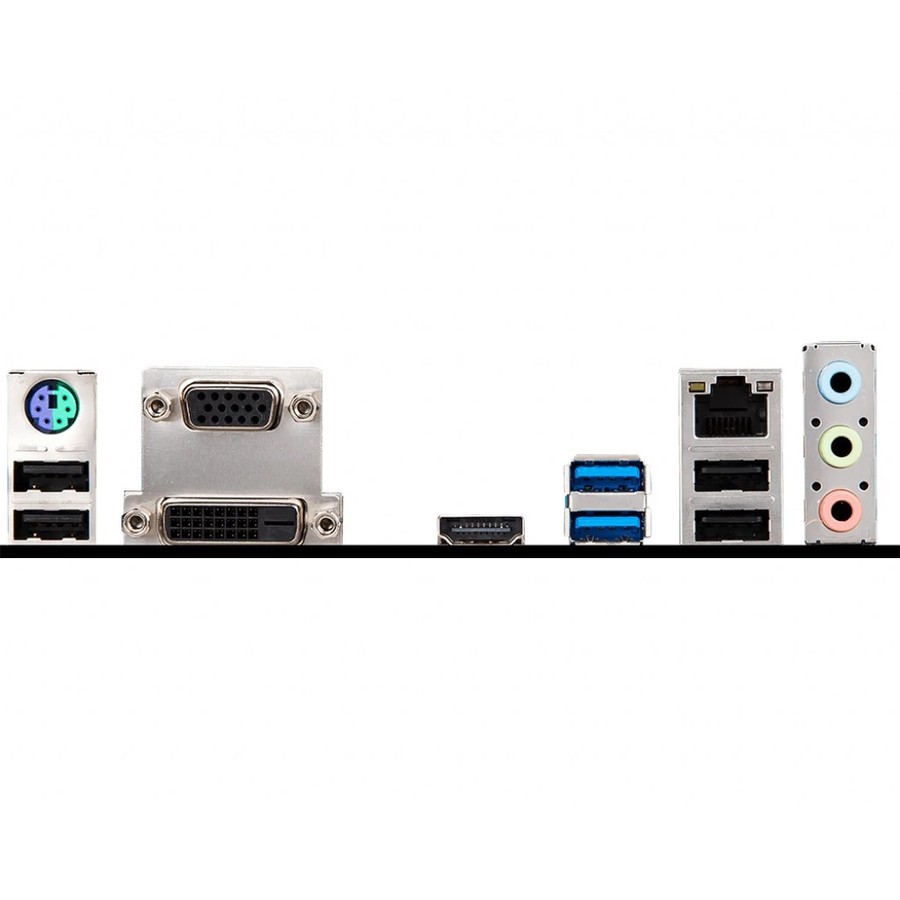

CONNECTIONS :
- PS/2 Combo Port
- VGA Port
- HDMI™ Port
- USB 3.1 Gen1 Ports
- LAN Port
- HD Audio Connectors
- DVI-D Port
- USB 2.0 Ports
