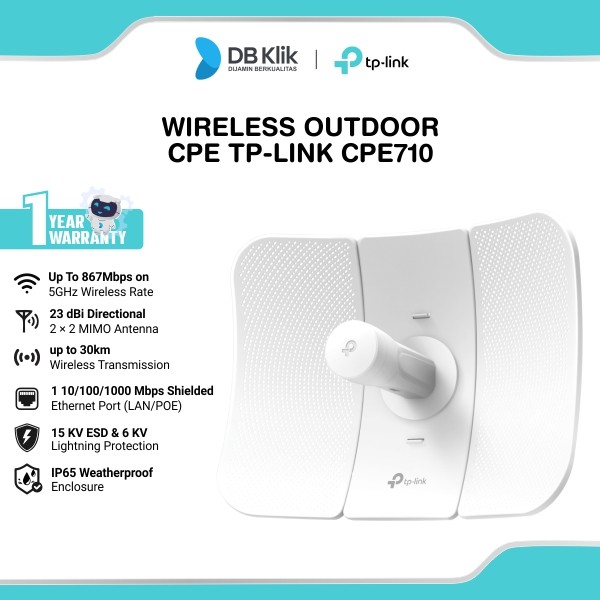

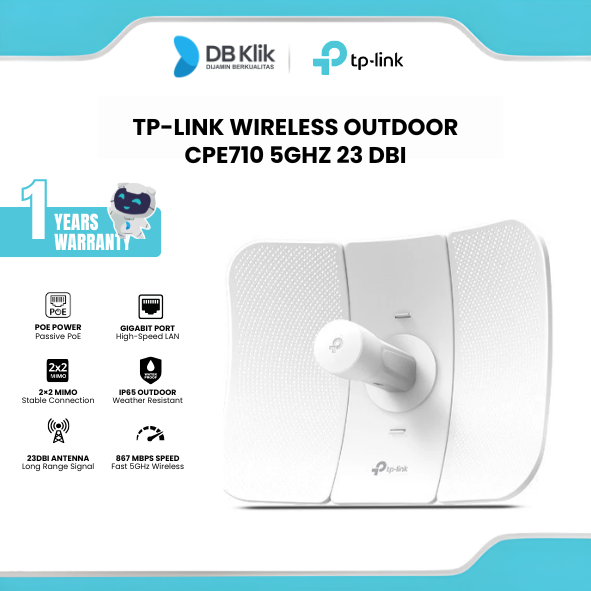

• 802.11ac for up to 867Mbps on 5GHz wireless data rate • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application • Excellent beam directivity, improved latency and noise cancellation • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability • Pharos Control gives administrators a free, centralized management system • Passive PoE supports to allow flexible deployment and convenient installation HARDWARE FEATURES Processor Qualcomm 750MHz CPU, MIPS 74Kc Memory 128 MB DDR2 RAM, 16 MB Flash Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) Antenna Gain 23 dBi Antenna Beamwidth 9° (Azimuth)/7° (Elevation) Protection 15 KV ESD Protection 6 KV Lightning Protection Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) Frequency 5.15–5.85 GHz Transmit Power Max. 27 dBm (Adjustable power by 1dBm) SOFTWARE FEATURES Network Configuration WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding Wireless Configurations Selectable Channel Width: 20/40/80MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/ Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia Long Range PtP Management Discovery and Remote Management via Pharos Control application HTTP/ HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server System Tools Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications POE ADAPTER FEATURES Dimensions(W x D x H) 85.8×43.9×29.7 mm Interfaces 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency >84.29%
