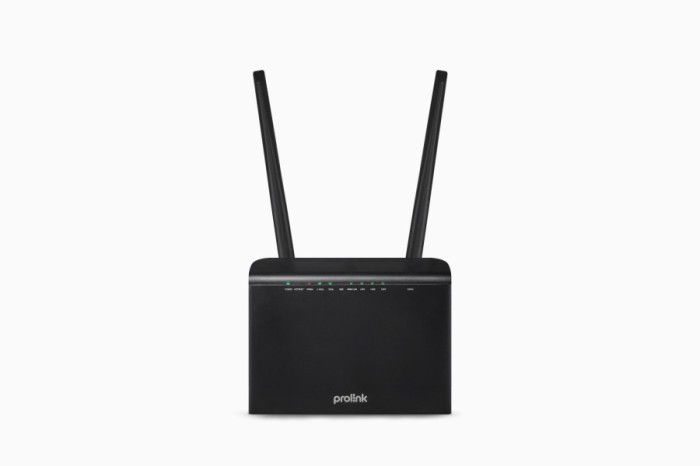

Modem Router Wireless PROLINK DL7303 LTE 4G DualBand

Frequency Bands

LTE -

CAT6 Download/Uplink up to 300Mbps/50Mbps

Band 1/3/5/7/8/20/38/40 or

Band 1/3/5/8/40

3G: Band 1/8

Bandwidth

LTE Band: 1.4/3/5/10/15/20/40(2CA) MHz

Modulation

Downlink: QPSK/16-QAM/64-QAM

Uplink: QPSK/16-QAM/64-QAM

Antenna

External: Detachable 2 x 5dBi

WLAN

Wi-Fi

Frequency: 2.4GHz, 5GHz

Protocol: 802.11b/g/n/ac

Channel: 1 ~ 13 (2.4GHz), 36 ~ 161 (5GHz)

Antenna: Internal, 2 x 2

Data Rate

802.11b: Up to 11Mbps

802.11g: Up to 54Mbps

802.11n: Up to 300Mbps

802.11ac: Up to 867Mbps

FEATURE

Interface

LAN/WAN :4x RJ45 (4x GE LAN or 1x GE WAN + 3 GE LAN)

USIM: Single, 2FF

USB: USB2.0 Host for file sharing

Power Jack: DC Input (12V 1A)

LED Indicator

Power: Power Status (1x Green)

WWAN: 4G/3G Network Status (5x Multi-colours)

Signal Bar: 4 bars to show the signal strength (4x Green)

Internet: Internet Connection Status (1x Green)

Wi-Fi 2.4G: 2.4GHz Wi-Fi Status (1x Green)

Wi-Fi 5G: 5GHz Wi-Fi Status (1x Green)

LAN/WAN: Ethernet Connection Status (4x Green)

SMS: SMS Status (1x Green)

Button

Power: On/off

WPS: Enable /Disable WPS

Reset: Restore Factory Settings

WebUI (System)

Connection Status

Statistics

Device Management

Power Management

WebUI (Mobile Service)

SMS Manager

Automatic APN matching according to USIM

Auto Data Connection

USSD Service

PIN/PUK Management

Network Mode Selection (3G/LTE/Auto)

WebUI (Router)

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

DHCP Server, IPv4/v6

Virtual Server,UPnP, DMZ, DDNS, Failover

VPN Passthrough

Dynamic IP/Static IP/PPPoE

Access Control, Local Management, Remote Management

Multi SSID (Dual SSID)

DoS, SPI Firewall, IP Address Filter/Domain Filter

Traffic Control (IP QoS)

SYSTEM REQUIREMENTS

OS Supported

Windows 7/8/10/11

MacOS 10.10+

Ubuntu 15.04+

Browser

IE9+

Firefox

Google Chrome

Safari

Opera
