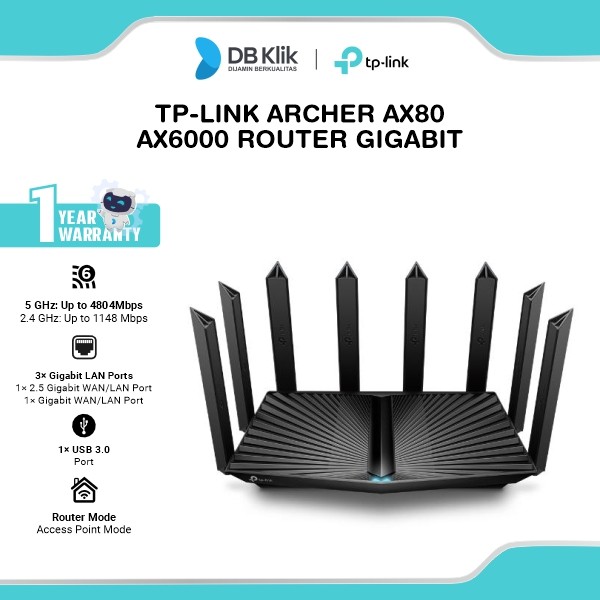

TP-Link Archer AX80 AX6000 Router Gigabit WIFI 6 Dual Band

WIRELESS
Standards and Protocols        Wi-Fi 6 :
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds :
AX6000
- 5 GHz: 4804Mbps (802.11ax, HE160)
- 2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range :
- 3+ Bedroom Houses
- 8× Fixed High-Performance Antennas , Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming , Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM , Improves transmission power to strengthen signal coverage

WiFi Capacity :
- Dual-Band , Allocate devices to different bands for optimal performance
- OFDMA , Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness , Improves network efficiency by limiting excessive occupation
- DFS , Access an extra band to reduce congestion
- 8 Streams , Connect your devices to more bandwidth

Working Modes :
- Router Mode
- Access Point Mode


SECURITY
Network Security :
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner

Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network


VPN Server :
- OpenVPN
- PPTP
- L2TP

VPN Client :
- OpenVPN
- PPTP
- L2TP

WiFi Encryption        :
- WPA3*6
- WPA2
- WPA
- WPA/WPA2-Enterprise (802.1x)

HARDWARE
Ethernet Ports :
- 1× 2.5 Gigabit WAN/LAN Port
- 1× Gigabit WAN/LAN Port
- 3× Gigabit LAN Ports

USB Support : 1× USB 3.0 Port


USB Sharing :
- FTP Server
- Media Server
- Samba Server

Buttons :
- LED On/Off Button
- WPS Button
- Wi-Fi On/Off Button
- Power On/Off Button
- Reset Button

Power        : 12 V/3.3 A

SOFTWARE
Protocols
- IPv4
- IPv6

Service Kits : HomeShield

OneMesh        :
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.


Parental Controls
HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
WAN Types : Dynamic IP , Static IP , PPPoE , PPTP , L2TP
Quality of Service : QoS by Device
Cloud Service : Auto Firmware Upgrade , OTA Firmware Upgrade , TP-Link ID , DDNS
NAT Forwarding : Port Forwarding , Port Triggering , DMZ , UPnP
IPTV : IGMP Proxy , IGMP Snooping , Bridge , Tag VLAN
DHCP : Address Reservation , DHCP Client List , Server
DDNS : TP-Link , NO-IP , DynDNS
Management Features : Tether App , Webpage


PHYSICAL
Dimensions (W×D×H)        10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)

Package Content        • Wi-Fi Router Archer AX80
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
