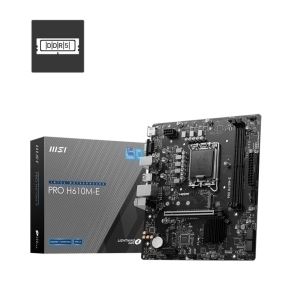

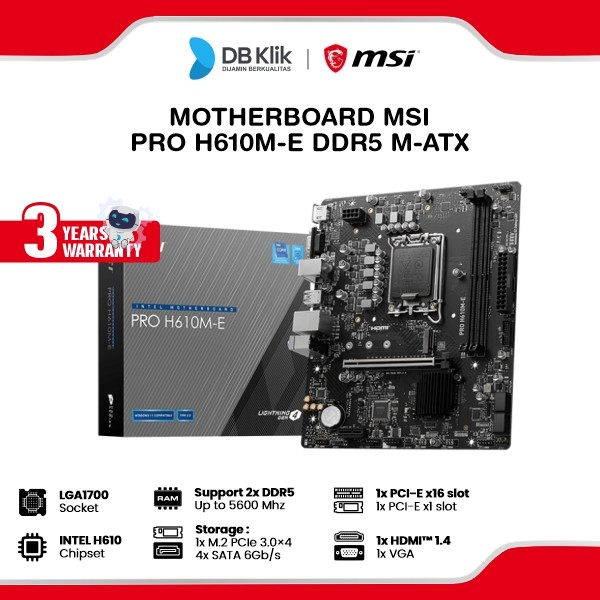

Motherboard MSI PRO H610M-E DDR5 m-ATX LGA1700

Chipset: INTEL H610

CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

Memory:

2x DDR5, Maximum Memory Capacity 96GB

Memory Support DDR5 5600 MHz (by JEDEC & POR)

Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics:

1x HDMI™

Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage:

1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN: Realtek® RTL8111H Gigabit LAN

Internal IO:

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE: 4x EZ Debug LED

BACK PANEL PORTS:

HDMI™

VGA

Keyboard / Mouse

USB 3.2 Gen 1 5Gbps (Type-A)

LAN port

Audio Connectors

USB 2.0

USB 2.0

OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info: mATX (200mmx236.16mm)

3 Years Warranty
