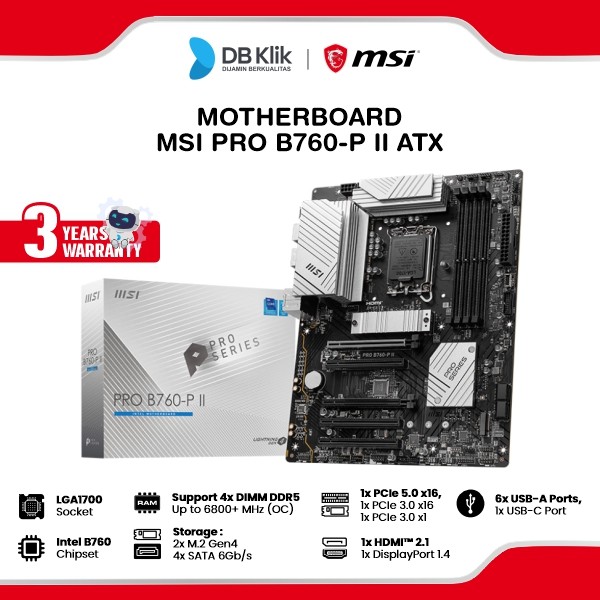

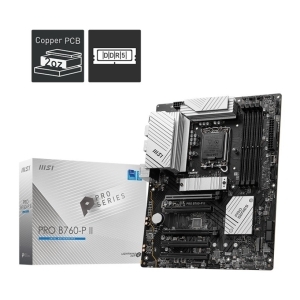

Motherboard MSI PRO B760-P II DDR5 ATX LGA1700

Chipset: INTEL B760

CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Memory:

4x DDR5, Maximum Memory Capacity 256GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics: 1x HDMI™ (Support HDMI™ 2.1, maximum resolution of 4K 60Hz*), 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

5x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Storage:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB:

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

1x USB 10Gbps Type C (Rear)

LAN: Realtek® RTL8125BG 2.5G LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

5x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports

LED FEATURE: 4x EZ Debug LED

BACK PANEL PORTS:

- DisplayPort

- 2.5G LAN

- USB 2.0

- Audio Connectors

- HDMI™

- USB 5Gbps (Type-A)

- USB 10Gbps (Type-C)

- S/PDIF-OUT

OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info: ATX (243.84mmx304.8mm)

BOX CONTENT:

- Unit Motherboard

- European Union Regulatory Notice

- Quick Installation Guide

- M.2 Screw / Standoff Set

- EZ M.2 Clip

- SATA Cable

- I/O Shield

3 Years Warranty
