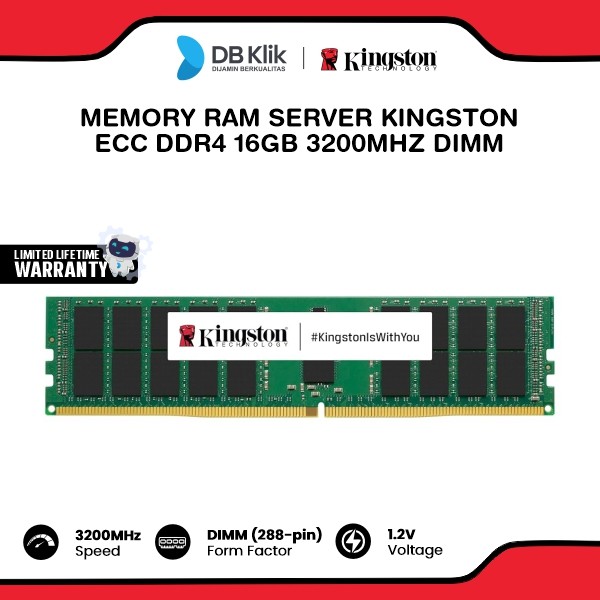

Memory RAM Server KINGSTON ECC DDR4 16GB 3200MHz DIMM

DESCRIPTION

Kingston's KSM32ED8/16HD is a 2G x 72-bit (16GB) DDR4-3200

CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module,

based on eighteen 1G x 8-bit FBGA components. The SPD is

programmed to JEDEC standard latency DDR4-3200 timing of

22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The

electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD) : 22 cycles

Row Cycle Time (tRCmin) : 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) : 350ns(min.)

Row Active Time (tRASmin) : 32ns(min.)

Maximum Operating Power : *

UL Rating : 94 V - 0

Operating Temperature : 0 C to 85 C

Storage Temperature : -55 C to +100 C

FEATURES

⦁ Power Supply: VDD = 1.2V Typical

⦁ VDDQ = 1.2V Typical

⦁ VPP = 2.5V Typical

⦁ VDDSPD = 2.2V to 3.6V

⦁ Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

⦁ Low-power auto self refresh (LPASR)

⦁ Data bus inversion (DBI) for data bus

⦁ On-die VREFDQ generation and calibration

⦁ Dual-rank

⦁ On-board I2 serial presence-detect (SPD) EEPROM

⦁ Temperature sensor with integrated SPD

⦁ 16 internal banks; 4 groups of 4 banks each

⦁ Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

⦁ Selectable BC4 or BL8 on-the-fly (OTF)

⦁ Fly-by topology

⦁ Terminated control command and address bus

⦁ PCB: Height 1.23” (31.25mm)

⦁ RoHS Compliant and Halogen-Free
