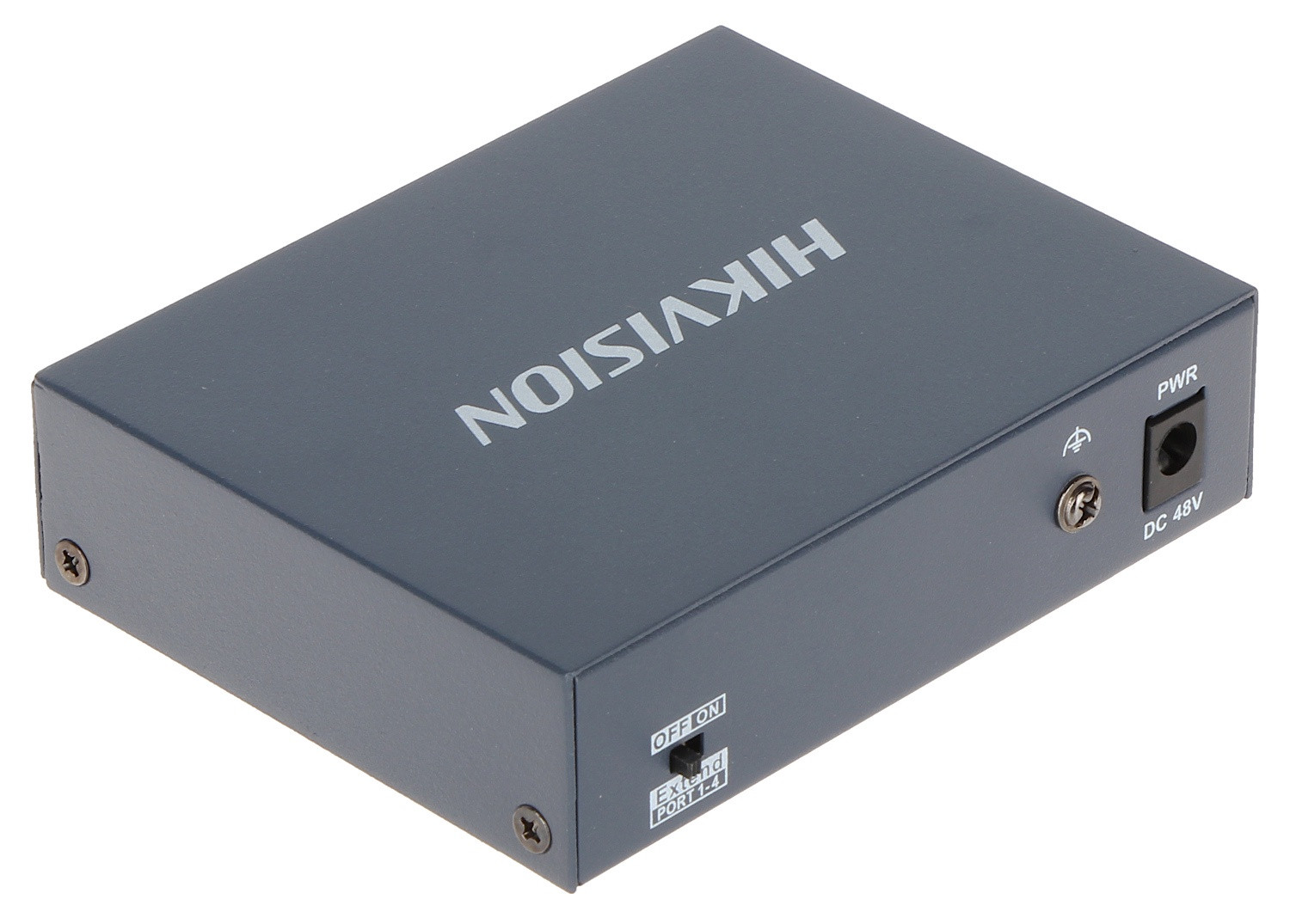

Switch Hub PoE Hikvision DS-3E0105P-EL 4 Port PoE + 1 Uplink

Metal material, fan-free design

Net Weight 0.2 kg (0.4 lb)

Gross Weight 0.74 kg (1.6 lb)

Dimensions (W × H × D) 105.0 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity 5% to 95% (no condensation)

Relative Humidity 5% to 95% (no condensation)

Power Supply 48 VDC, 1.35 A

Max. Power Consumption 65 W

Power Consumption In Idle 5 W

Installation Mode

Desk-Mounted,Wall-Mounted;

Surge Protection 6 KV

Network Parameters

4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port

MAC Address Table 1 K

Switching Capacity 1 Gbps

Packet Forwarding Rate 0.74 Mpps

Internal Cache 448 Kbits

PoE Power Supply

PoE Standard IEEE 802.3af,IEEE 802.3at

PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port PoE: Ports 1 to 4

Max. Port Power 30 W

PoE Power Budget 60 W

Dialing Function

Long Range Ports 1 to 4: up to 300 m

Long range performance may vary depend on camera model or cable condition.

Software Function

VIP Port :Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
