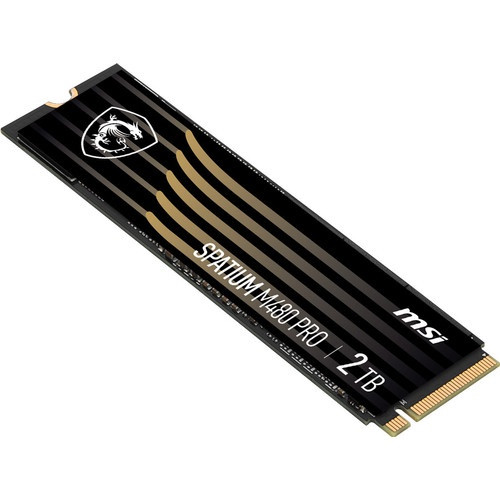

Ssd Internal Msi Spatium M480 Pro 2TB M.2 2280 NVMe Gen 4

Model Name M480 PRO PCIe 4.0 NVMe M.2

Capacity 2TB

Controller PHISON E18

Flash Memory 3D NAND

DRAM Cache 1GB DDR4

Form Factor M.2 2280

Interface PCIe Gen4x4, NVMe 1.4

Compatibility PCIe Gen4/ Gen3 / Gen2 / Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s) 7400

Sequential Write up to (MB/s) 6000

Random Read 4KB up to (IOPS) 750,000

Random Write 4KB up to (IOPS) 1,000,000

Maximum Operating Power (W) 9.5

Idle Power PS3 (mW) 40

Low Power L1.2 (mW) 3

Operating Temperatures 0°C – 70°C

Storage Temperatures -40°C – 85°C

Terabytes Written (TBW) 700

Mean Time Between Failure (MTBF) Up to 1,600,000 Hours

Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features TRIM (Performance Optimization, OS Support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

AES256/Pyrite (Encryption, Data Security)
