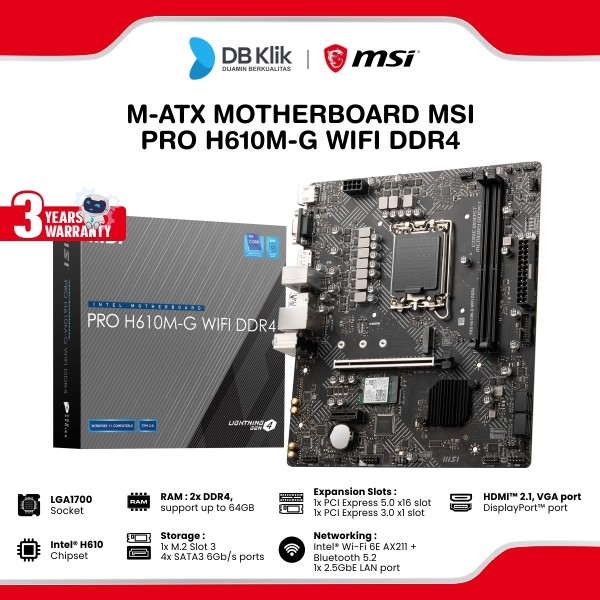

Processor Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1700 Chipset Intel® H610 Chipset Memory 2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Expansion Slot 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 Wireless LAN & Bluetooth® Intel® Wi-Fi 5 Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps Supports Bluetooth® 5.1 Onboard Graphics 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1 x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Sata Ports 4x SATA 6Gb/s ports1 * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. M.2 Ssd Slot 1x M.2 slot (Key M, from chipset)1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot Usb Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
