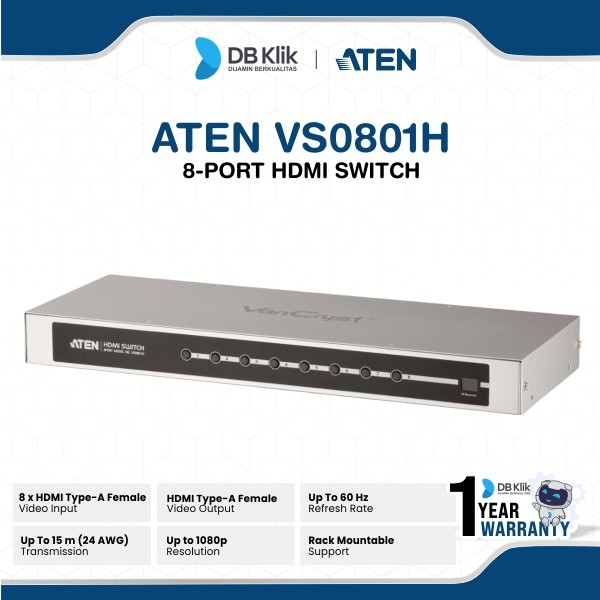

Aten VS0801H 8-Port 1080p Fhd Hdmi Switch

Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3m @1920X1080@60 (4:4:4)

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15m @1920X1080@60 (4:4:4)

Max. Data Rate  6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz

Compliance
HDMI (3D, Deep Color)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p

Audio
Input 8 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)

Control
RS-232        Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:4.37W:20BTU

Physical Properties
Housing Metal
Weight  1.75 kg ( 3.85 lb )
Dimensions (L x W x H)  43.70 x 15.98 x 4.40 cm
