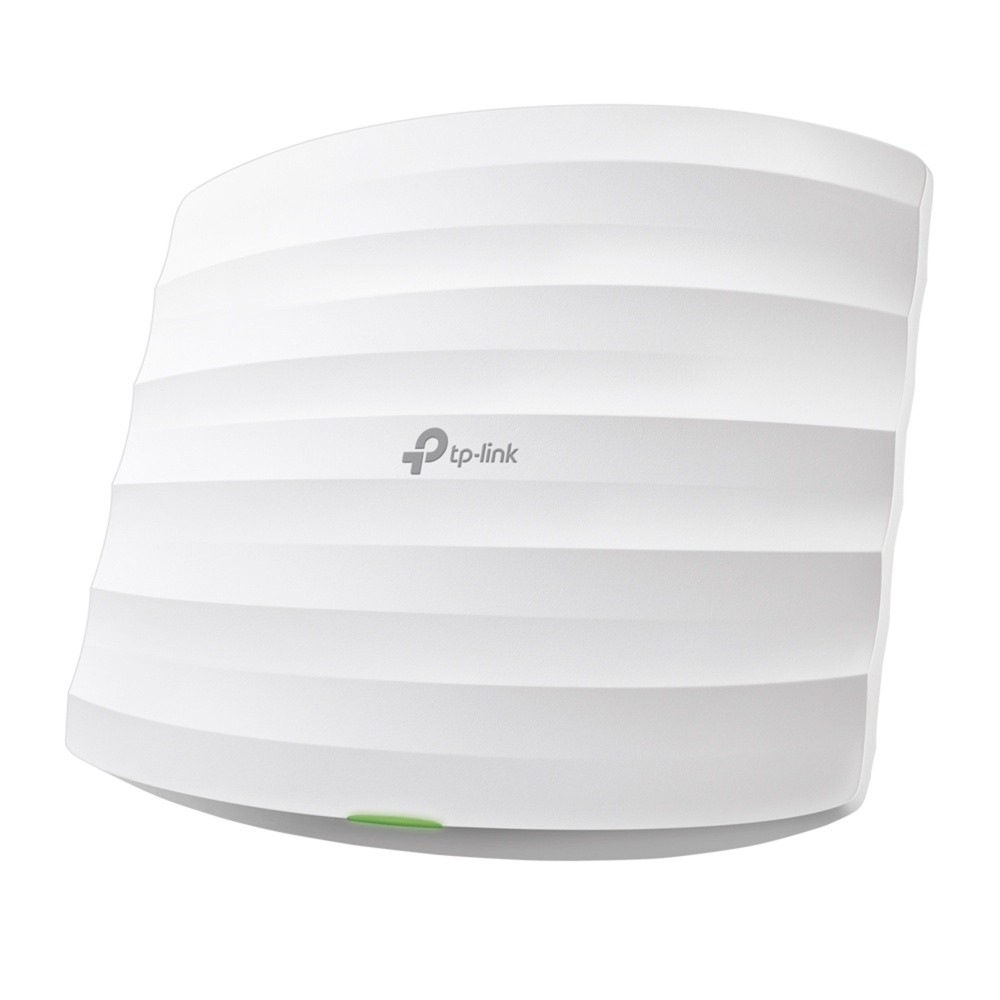

Access Point TP-Link EAP245 AC1750 Wireless MU-MIMO Gigabit Ceiling Mount

HARDWARE FEATURES
Interface: 2 × Gigabit RJ45 Ports (One port supports IEEE802.3at PoE, another port supports Passive PoE Out)
Physical Security Lock: Yes
Button: Reset
Power Supply:
• 802.3at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption:
EU: 15.2 W
US: 16.3 W
Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type:
Internal Omni
• 2.4 GHz: 3× 3.5 dBi
• 5 GHz: 3× 4 dBi
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage: 140㎡(1500 ft²)§
Concurrent Clients: 220+***
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate:
• 5 GHz: Up to 1300 Mbps
• 2.4 GHz: Up to 450 Mbps

Wireless Functions:
• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz, 7 for 5GHz)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK

Transmission Power:
• CE：
≤20 dBm (EIRP @2 GHz)
≤23 dBm (EIRP @5 GHz Band1&2)
≤28 dBm (EIRP @5 GHz Band3)
• FCC:
≤24 dBm (2.4 GHz)
≤24 dBm (5 GHz)

MANAGEMENT
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification: CE, FCC, RoHS
Package Contents:
• AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
• Gigabit 48V Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
