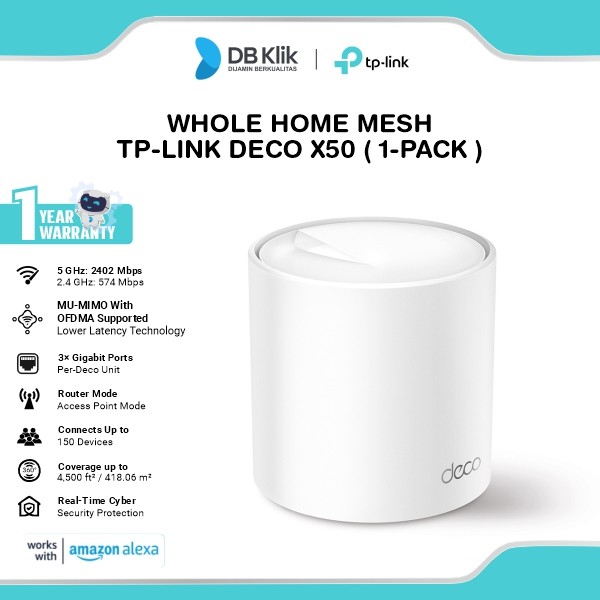

Whole Home Mesh TP-Link Deco X50 AX3000 WiFi 6 Dual Band ( 1-Pack )

WIRELESS
Standards & Protocols
– Wi-Fi 6 (802.11ax)
– IEEE 802.11ax/ac/n/a (5 GHz)
– IEEE 802.11ax/n/b/g (2.4 GHz)

WiFi Speeds
– AX3000
– 5 GHz: up to 2402 Mbps (802.11ax, HE160)
– 2.4 GHz: up to 574 Mbps (802.11ax)

WiFi Coverage
– 1–3 Bedroom Homes (1-pack)
– Seamless coverage with TP-Link Mesh Technology
– Optional Ethernet backhaul supported

AI-Driven Mesh
– Intelligently adapts to your home environment for optimal coverage

Internal Antennas
– 2× Antennas (Deco X50 V1.0~V2.0)
– 3× Antennas (Deco X50 V3.0)

WiFi Capacity
– Dual-Band
– 4 Streams
– High capacity with MU-MIMO (2×2) and OFDMA support

Operating Modes
– Router Mode
– Access Point Mode

SECURITY
Network Protection
– SPI Firewall
– Access Control
– WPA / WPA2 / WPA3 Personal encryption

HomeShield Security Suite
– Real-Time IoT Protection
– Malicious Site Blocker
– Intrusion Prevention System
– DDoS Attack Protection
– Home Network Scanner

Guest Network
– 1× 5 GHz
– 1× 2.4 GHz
– Effective Time & Bandwidth Control

VPN Support
– VPN Server: OpenVPN, PPTP, L2TP
– VPN Client: OpenVPN, PPTP, L2TP

HARDWARE
Ethernet Ports
– 3× Gigabit Ports per unit (WAN/LAN auto-sensing)

Button
– 1× Reset Button

Dimensions
– 110 × 110 × 114 mm (4.33 × 4.33 × 4.49 in)

SOFTWARE & MANAGEMENT
Protocols
– IPv4, IPv6

Advanced Features
– Reboot Schedule
– Tapo/Kasa device onboarding
– IoT Network & Device Isolation
– Static Routing
– Node/Band Connection Preferences

HomeShield Parental Controls
– YouTube Restriction, SafeSearch
– Custom Profiles, Bedtime, Off Time
– Family Time, Time Rewards
– Content Filtering Library
– Online Time Rankings
– Pause Internet, Weekly & Monthly Reports

WAN Types
– Dynamic IP, Static IP, PPPoE, PPTP, L2TP

QoS
– HomeShield QoS, Device-Based QoS

Cloud Features
– OTA Firmware Updates
– TP-Link ID
– DDNS

NAT Forwarding
– Port Forwarding
– UPnP

IPTV Support
– IGMP Proxy, IGMP Snooping, Bridge, VLAN Tag

DHCP Functions
– DHCP Server, Client List, Address Reservation

Management
– TP-Link Deco App

DEFAULT NETWORK SERVICES
Web Management (HTTP/HTTPS): Port 80/443 (TCP)

DHCP Server: Port 67 (UDP)

App Communication:
– TCP Ports: 22, 20001, 30001
– UDP Port: 20002

WIRELESS TRANSMISSION POWER
CE Compliance
– <20 dBm (2.4 GHz)
– <23 dBm (5 GHz)

FCC Compliance
– <30 dBm (2.4 GHz & 5 GHz)

PACKAGE CONTENTS
Deco X50 (1-pack)
– 1× Deco X50 unit
– 1× RJ45 Ethernet Cable
– 1× Power Adapter
– 1× Quick Installation Guide

SYSTEM REQUIREMENTS
Android 5.0 or later
iOS 9.0 or later
Note: Minimum system requirements may change with future app updates.

CERTIFICATIONS
CE, FCC, RoHS, RCM

ENVIRONMENTAL CONDITIONS
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
