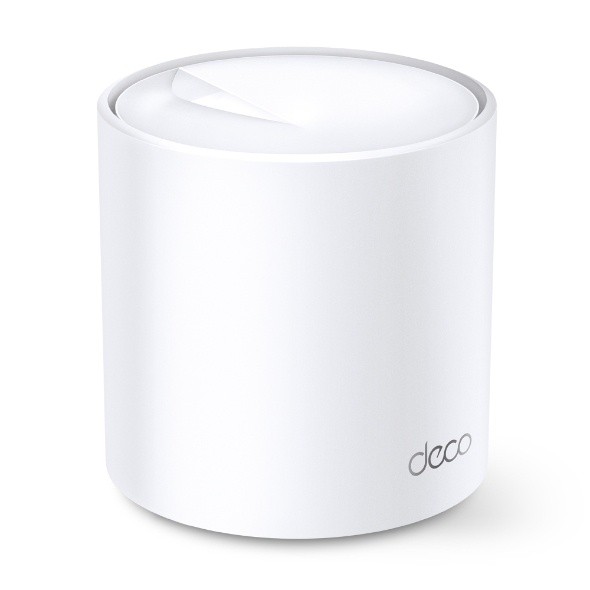

Whole Home Mesh TP-Link Deco X20 AX1800 WiFi 6 Dual Band ( 1-Pack )

Key Features

Wi-Fi 6 Dual Band Speeds

– 5 GHz: up to 1201 Mbps

– 2.4 GHz: up to 574 Mbps

Coverage Area

– 1-pack: Covers 1–3 bedroom homes

– Expandable up to 6 bedrooms with additional units

TP-Link Mesh Technology

– Seamless roaming with unified network name

– Optional Ethernet backhaul supported

Wireless Performance

Internal Antennas (x2)

– Optimized coverage with multidirectional signal boosting

Beamforming Technology

– Focuses signal strength towards connected devices

High Wi-Fi Capacity

– Dual-band with 4 streams

– MU-MIMO and OFDMA support for multiple simultaneous connections

Operating Modes

Router Mode

Access Point Mode

Security

HomeShield Security Suite

– Real-time IoT protection

– Malicious site blocker

– Intrusion prevention system

– DDoS protection

– Home network scanner

Wi-Fi Encryption: WPA / WPA2 / WPA3 Personal

SPI Firewall & Access Control

Guest Network

– Separate 2.4 GHz & 5 GHz guest access

Parental Controls (via HomeShield)

Custom user profiles

Content filtering with professional library

YouTube restriction & SafeSearch

Time limits (Bedtime, Off Time)

Time rewards & Family Time features

Online activity reports (weekly/monthly)

Pause internet access per device

Hardware

Ports: 2× Gigabit Ethernet ports (WAN/LAN auto-sensing)

Buttons: 1× Reset button

Dimensions: 110 × 110 × 114 mm

Software & Management

TP-Link Deco App for easy setup and control

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

IP Protocols: IPv4 / IPv6

Quality of Service: QoS by device (HomeShield)

Cloud Services: OTA firmware updates, TP-Link ID, DDNS

NAT Forwarding: Port Forwarding, UPnP

IPTV Support: IGMP Proxy, IGMP Snooping, Bridge, VLAN Tag

DHCP Functions: DHCP Server, Address Reservation, Client List

Default Network Services

Web Management (HTTP/HTTPS): Port 80/443

DHCP (UDP Port 67)

App Control Ports:

– TCP: Ports 22, 20001, 30001

– UDP: Port 20002

Wireless Transmission Power

CE:

– <20 dBm (2.4 GHz)

– <23 dBm (5 GHz)

FCC:

– <30 dBm (2.4 / 5 GHz)

What’s in the Box

1× Deco X20 Unit

1× RJ45 Ethernet Cable

1× Power Adapter

1× Quick Installation Guide

System Requirements

Android 5.0 or above

iOS 9.0 or above

Note: Requirements may change with future app updates.

Certifications

CE, FCC, IC, RoHS, JPA, JRF, VCCI

Environmental Conditions

Operating Temp.: 0°C – 40°C (32°F – 104°F)

Storage Temp.: -40°C – 60°C (-40°F – 140°F)

Operating Humidity: 10% – 90% non-condensing

Storage Humidity: 5% – 90% non-condensing
