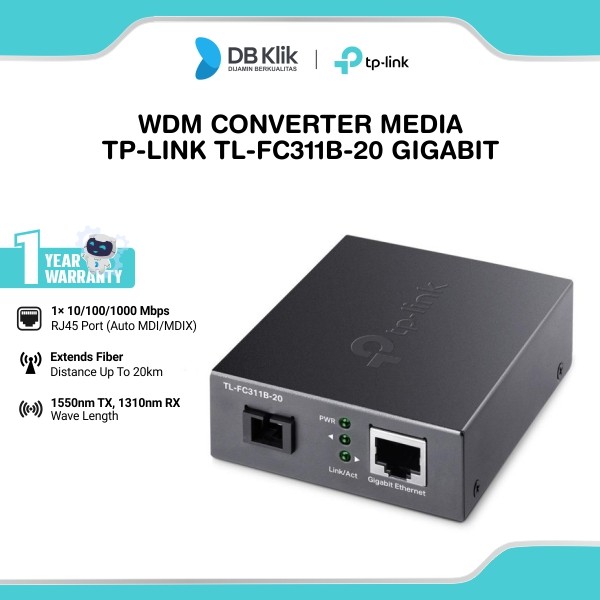

Wdm Converter MediaTP-LINK TL-FC311B-20 Gigabit Single Mode 20Km

TL-FC311B-20 Gigabit WDM Media Converter

harus berpasangan dengan

TL-FC311A-20 Gigabit WDM Media Converter

Network

Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

Environment

Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)

Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)

Operating Humidity 10% to 90% RH non-condensing

Storage Humidity 5% to 90% RH non-condensing

Hardware Features

Interface • 1× Gigabit SC Fiber Port

• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Network Media • Single-mode Fiber

• UTP category 5, 5e cable (maximum 100m)

Power Supply External Power Adapter: 5 V/0.6 A

LED PWR, Link/Act

Dimensions ( W x D x H ) 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)

Wave Length • 1310 nm TX

• 1550 nm RX

Media Converter & Module

Fiber Type 9/125 μm single-mode fiber

Others

Package Contents

• Media Converter TL-FC311B-20

• Power Adapter

• Installation Guide
